a long arm and a small cabin crane lifting heavy objects

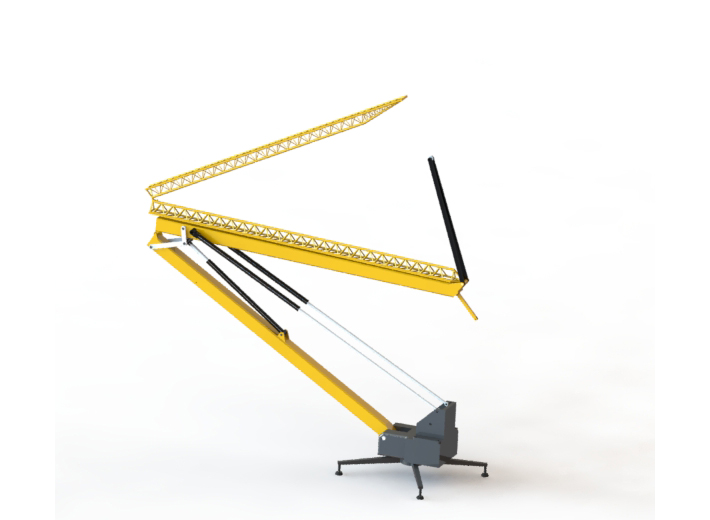

Self-Erecting Intelligent Tower Crane

Easy to erect
Easy to transport
Easy to operate

Mechanised construction is an irreversible trend.

FREE QUOTE NOW [email protected]

Description

Folding mobile tower crane (referred to as tower crane) refers to the installation, erection or dismantling, transfer is very fast, the installation and dismantling process can rely on their own institutions, without having to resort to external lifting equipment, a tower crane lifting equipment, generally can be completed in 1 to 2 hours or so, suitable for low-rise, single-block building construction, etc.

Self-Erecting Intelligent Tower Crane

Type:Under-Slewing Crane
Operation：Wireless Operation
Power：380V/50Hz
Foundation：Without Foundation
Structural：Folding

Advantages

Without foundation, saving construction cost, low requirement for site conditions.

Erecting and starting rapidly.

None working on the high level during erecting and dismounting.

Mast locked automatically, jib sections connected automatically in the air.

No require professional operator,operating simply, mastering easily.

Parameters

Category	Item	Unit	JL1720-10	JL2527-20	JL2527-30	JL2227-40
Hoisting parameters	Max.hoisting height	m	17	25	25	22
	Max.working radius	m	20	27	27	27
	Max.hoisting weight	Kg	1000	2000	2900	4000
	Hoisting speed	m/min	16/32	13/26	13/26	13/26
	Trolleying speed	m/min	19	20/40	20/40	20/40
	Slewing speed	r/min	0.8	0.25/0.8	0.25/0.8	0.25/0.8
	Erecting time	min	6	10	10	10
	Outrigger span	m	3.5x3.5	4.2x4.2	4.2x4.2	4.2x4.2
	Dead weight	Kg	15500	27000	34000	40000
Travel parameters	Max.towing speed	Km/h	15	15	15	15
Hydraulic system	Hydraulic system	Mpa	28	28	28	28
Power supply	Rated Power	Kw	11.4	23.1	23.1	23.1
Power supply	Power supply	380/50HZ

FAQ

Q1:Are you trading company or manufacturer?
A: Jinli is a manufacturer.
Q2: What about the warranty time?
A: Jinli provide 12 months after-sales service.
Q3. What about the Minimum Order Quantity?
A:The MOQ is 1 psc.
Q4. What's the mini tower crane packing?
A:JL1720-10 use 40 high container. JL2527-20 and JL2527-30 use 45 high container.
If your local port can't receive 45'HC can use 2pieces 40'HC.
Q4. What's the delivery time?
A: It depends on if we have stock, So send inquiry to us at first.
