JLD2400 Luffing Jib Tower Crane



  • Max. Hoisting Capacity:110t
  • Max. Boom Length:65m

JLD2250S/200t can meet the lifting requirements of the hub height under 185m.

Description

The large luffing tower crane has more and more unique advantages in large projects and steel structure high-rise buildings at home and abroad due to its characteristics of large lifting moment, large lifting weight, small rotary radius of tower crane tail, wide operating range and adaptability to narrow site.

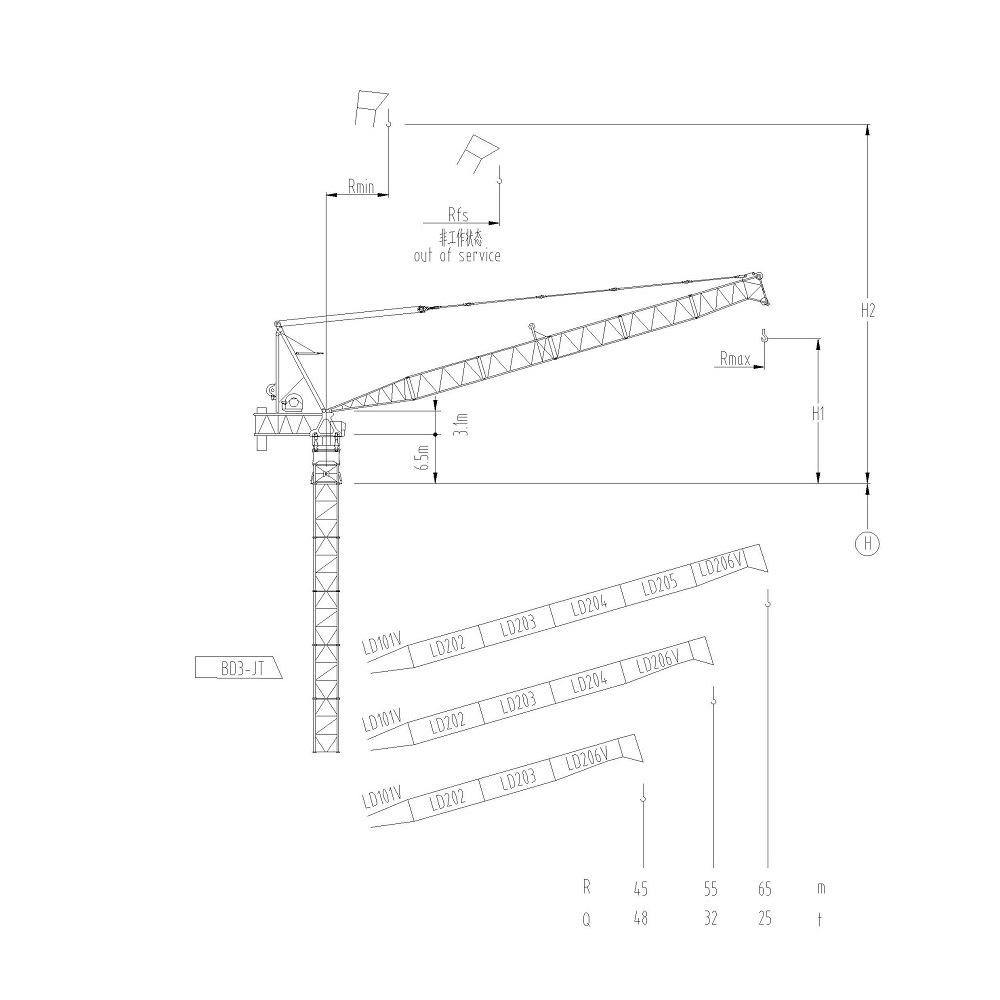

JLD2400 Luffing Jib Tower Crane

  • Model:JLD2400/110t
  • Max. hoisting capacity:110t
  • Max. hoisting capacity at jib end:25t
  • Max. boom length:65m
  • Max. free standing height:162.5m
  • Working Statue Wind Speed:20m/s
  • Size of foundation:18m × 18 m
  • Ground pressure requirement:200Kpa
  • Wind speed (instantaneous):20m/s  (working status)35.8m/s(non-working state)
  • Working Temperature: -20~+40℃

Features

1

Platform Area: 30m×40m

2

Strong Wind Resistance:20m/s

3

Temporary Land for Jib Assembling:0

4

Lifting Height:198m

5

Foundation Capacity Requirements:175Kpa

6

Disassembling Time:36hr

Advantages

1

Economical Efficiency
1.1 Engineering economy: Normally 50m×40m platform, 30m×40m in extreme condition also fine small occupation area, saving civil construction cost; Suitable for challenging terrain.
1.2 Transportation economy: 25 trailers are needed;Most components transportation size is controlled by 3.75m × 3.75m Auxiliary crane for installation:250ton Crawler crane ,350 ton All Terrain Mobile Crane

2

Safety
2.1 Strong wind resistance, high safety
2.2 Safety & Low Pad Requirement Base distance 18m×18m Strong anti-overturning ability, the pad requirements is 175kPa

3

Transition Efficiency
3.1. Double TC Base Frame
3.2. Around 36 hours transition between the Crane Pad
3.3. Modular design, convenient disassembly and assembly

Applications

Luffing jib tower crane is a specialized type of construction crane that is commonly used in high-rise building construction, bridge building, and other large-scale projects.
