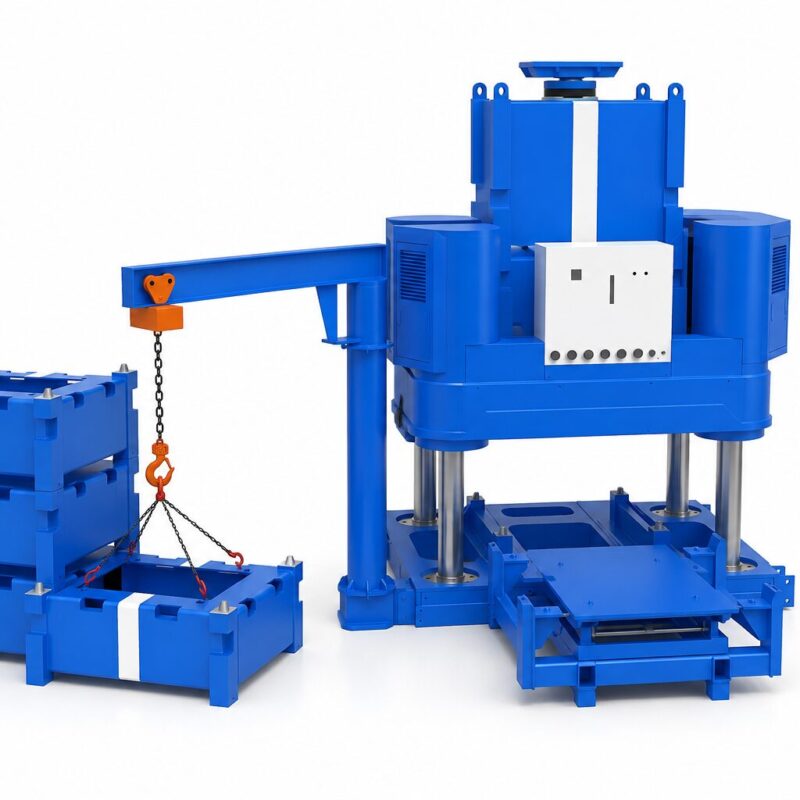

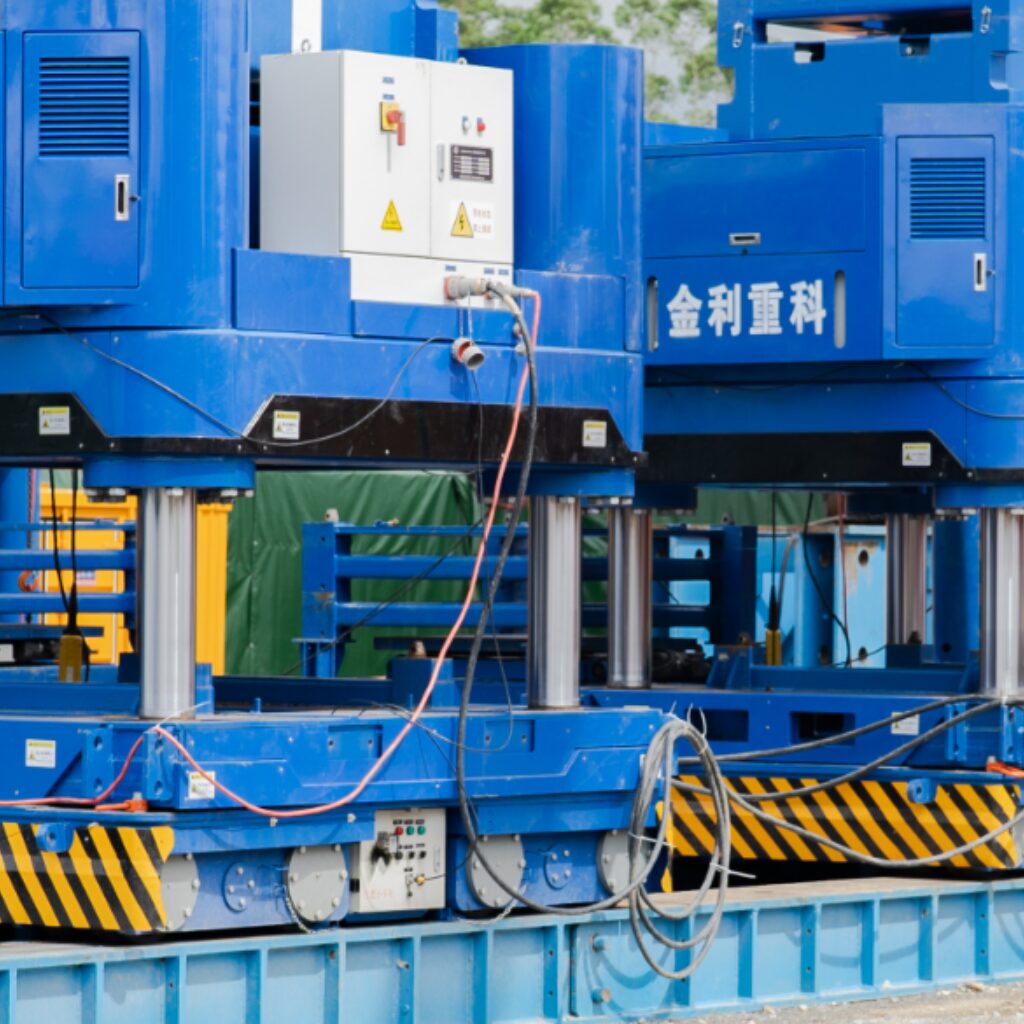

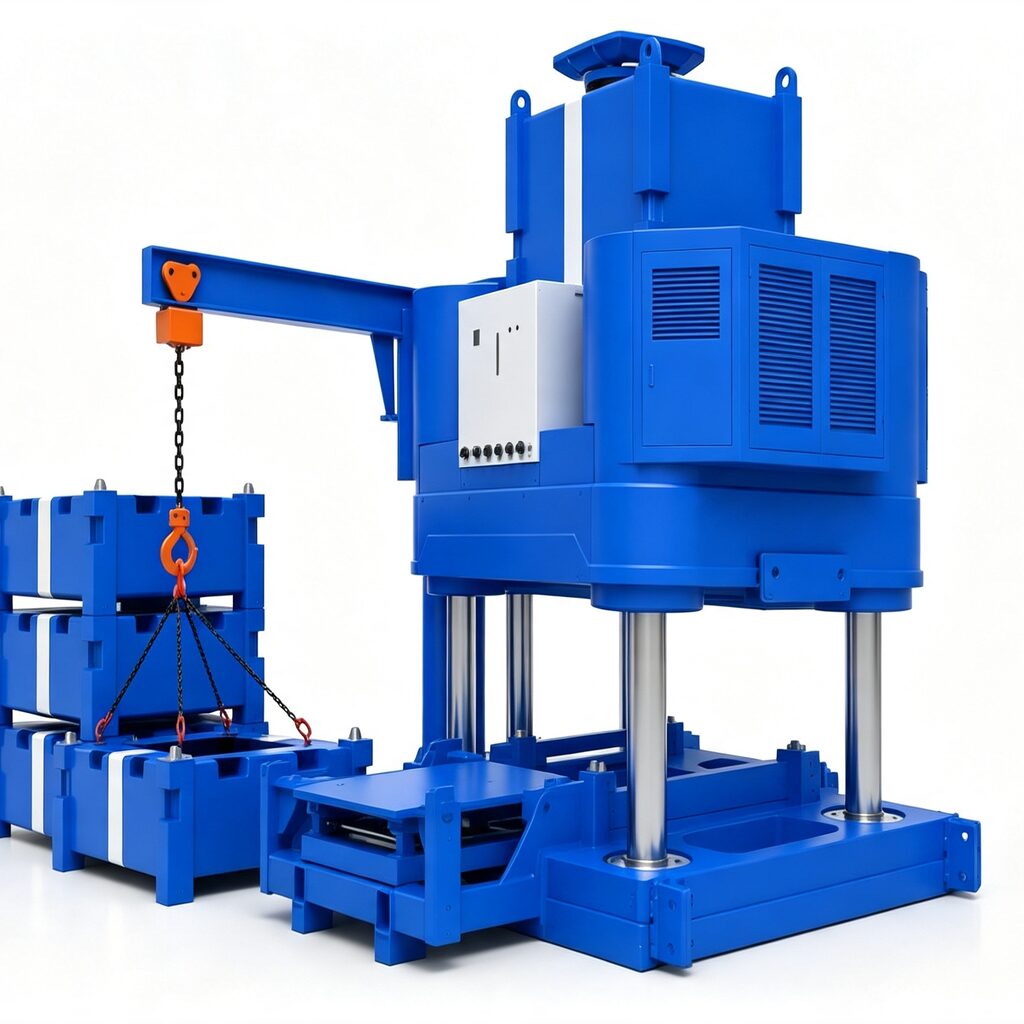

Hydraulic Jack-Up System

  • Lifting Capacity per Unit:300t,500t,1000t
  • Lifting Capacity per Set:1200t~8000t

Features:

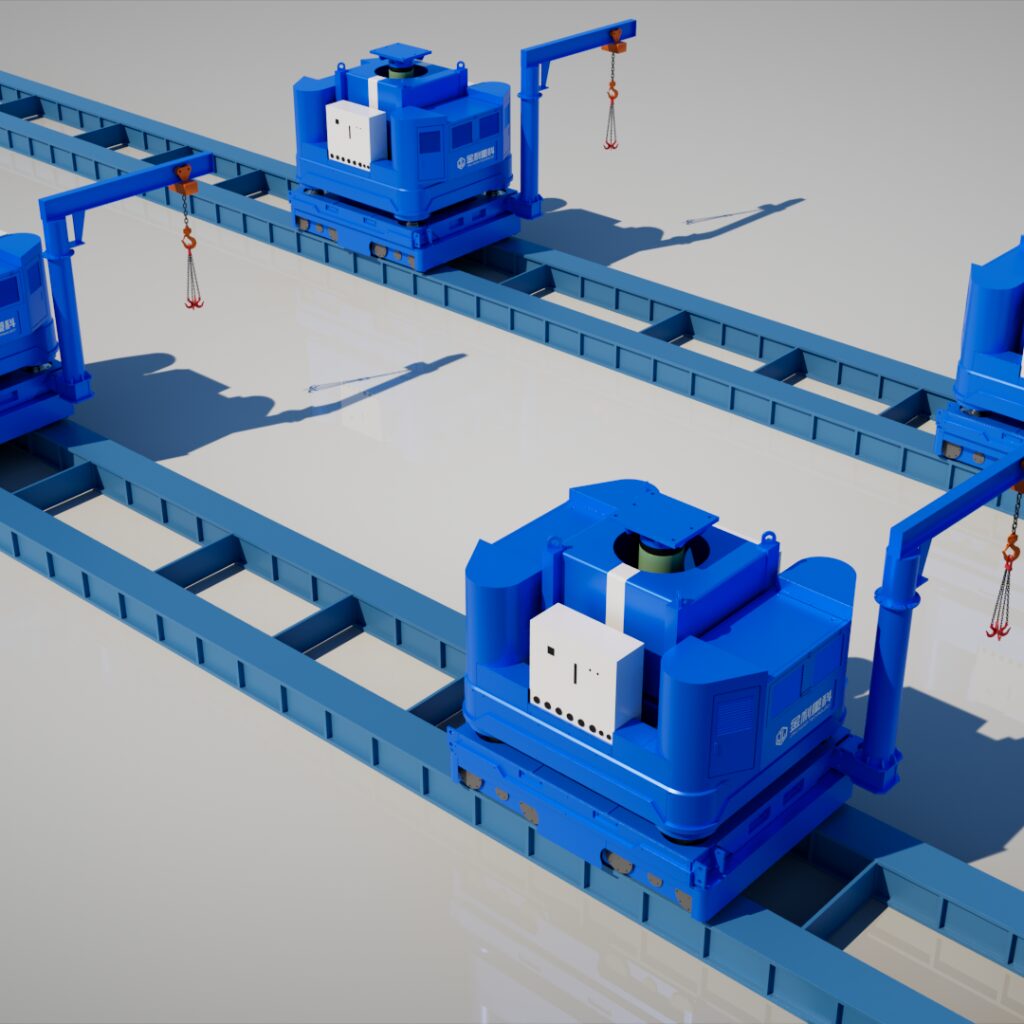

Synchronous lifting and horizontal movement, high capacity, and reliable performance.

Applications:

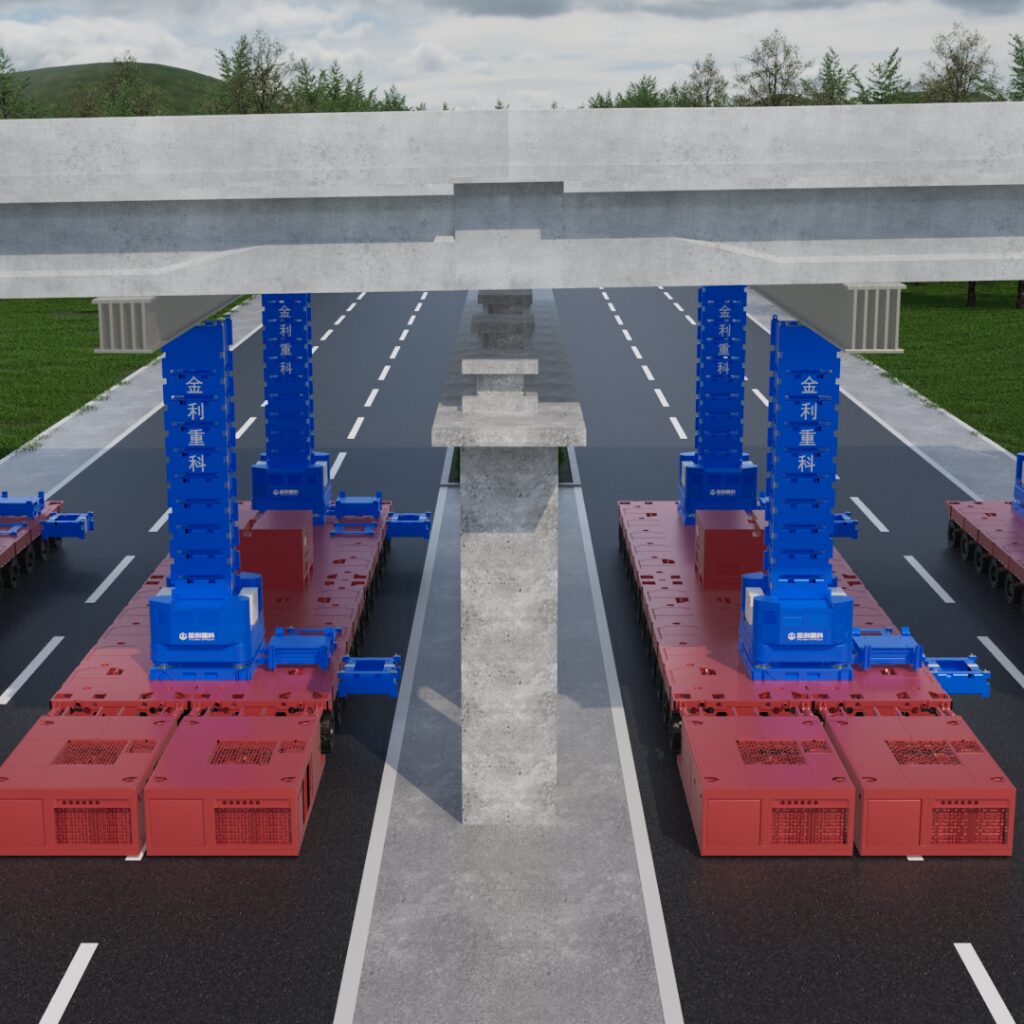

Synchronous Lifting of Large Structures

Description

The Hydraulic Jack-Up System is available in single-unit lifting capacities of 300 t, 500 t, and 1000 t, providing flexible solutions for various heavy lifting applications. Featuring a modular design, multiple units can be connected and operated in parallel to form a complete lifting system consisting of 4, 8, or more jacks, achieving a maximum total lifting capacity of up to 8000 t.

The system offers stable, precise, and synchronized lifting performance, ensuring safe and efficient operation when handling heavy loads and large structures. Its flexible configuration can be customized according to project requirements, including lifting capacity and site conditions. It is suitable for bridge construction and maintenance, heavy equipment installation, large structural lifting, and other demanding engineering projects.

Key Features

  • Modular design with capacities ranging from 1200 to 8000 t per jacking system
  • Multiple systems can be combined to meet diverse project requirements
  • Compact design with a small footprint
  • Compatible with weighing systems for enhanced stability
  • Flexible configurations for different job sites
  • Containerized design for efficient transportation and installation

Technical Specifications

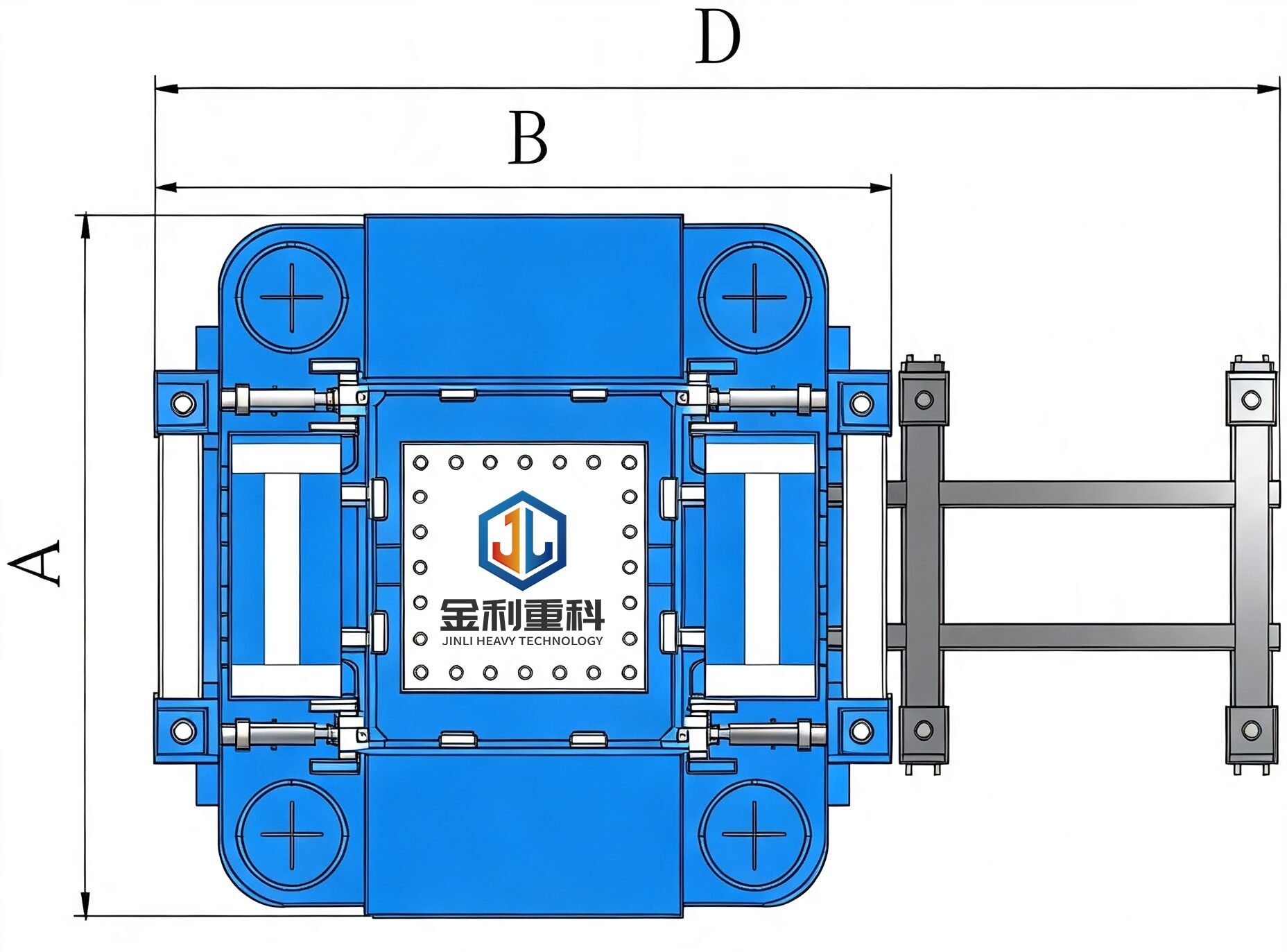

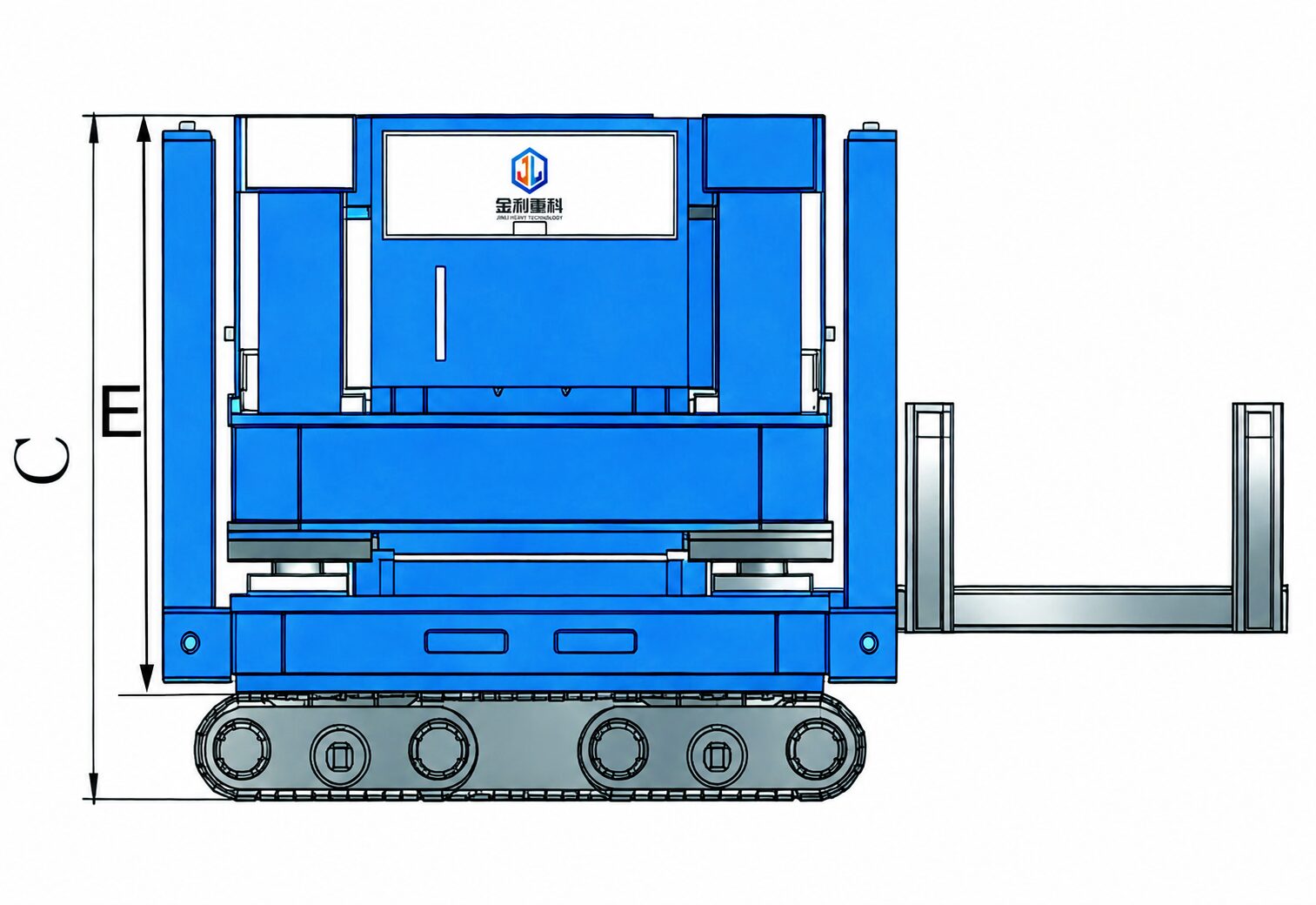

ModelLoad-bearing capacity per unit(t)Maximum Lateral Load&Maximum HeightMaximum Lifting Speed (m/h)Base Frame DimensionPower (kW)Dead Weight (t)
ABCD
JLDS3003001.5%@20m4.229702320265840203022000
JLDS5005001.5%@20m4.231002500240045004026000
JLDS100010003%@16m4.236703250280061004531000

Applications

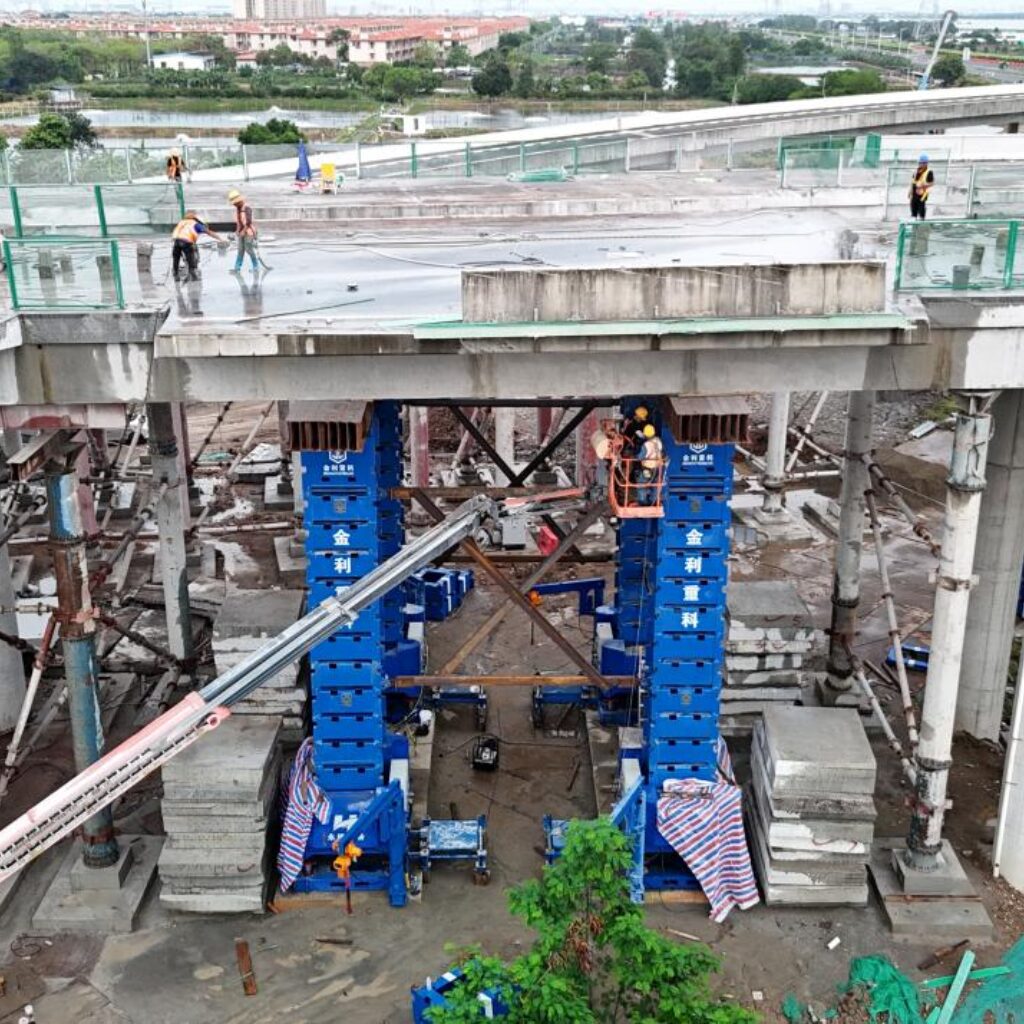

Fangma Interchange Bridge Rehabilitation Project

Project Overview

  • Bridge rehabilitation project at a major expressway interchange in the Greater Bay Area.
  • Large-span bridge girders and limited working space required a reliable heavy lifting solution.

Challenges

  • Restricted clearance beneath the bridge and confined construction conditions.
  • Heavy bridge components required high lifting capacity, precise synchronization, and stable load control during relocation.

Application

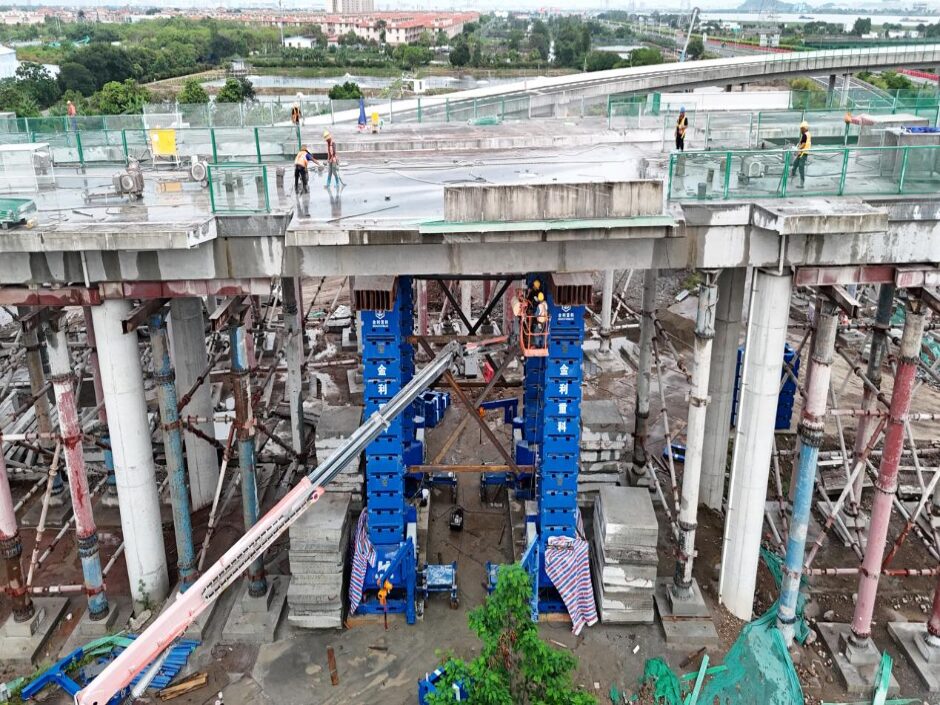

  • The JLDS300t Hydraulic Jack-Up System was applied for synchronized lifting and bridge relocation operations.
  • Intelligent synchronization control and flexible modular deployment ensured safe, accurate, and efficient construction while minimizing the impact on surrounding traffic.
Hydraulic Jack-Up System - 应用案例2

Mining Equipment Undecking Project

Project Overview

  • Maintenance operation requiring the lifting and separation of the upper structure of a 1,500-ton electric rope shovel.
  • The project required a reliable heavy lifting solution with precise control and stability.

Challenges

  • Extremely heavy equipment required high-capacity lifting and accurate positioning.
  • Traditional lifting methods involved complex operations and limited flexibility for large-scale maintenance work.

Application

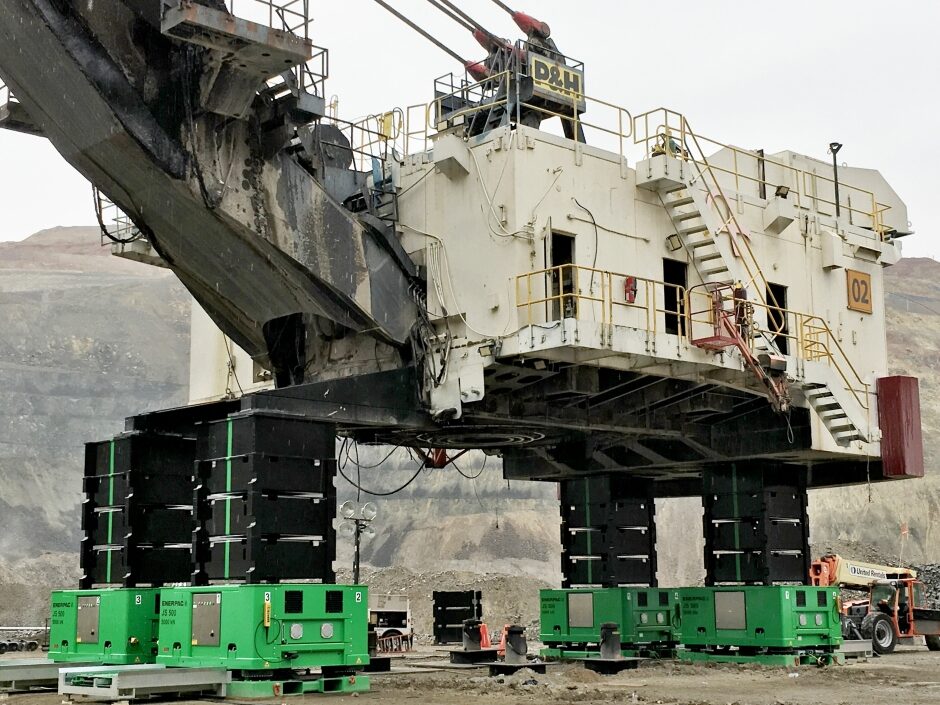

  • The Hydraulic Jack-Up System was applied for synchronized lifting and undecking operations of the electric rope shovel.
  • Computer-controlled lifting ensured stable load distribution, precise movement, and safe maintenance access.

Metro Construction

Project Overview

  • Large-scale underground infrastructure project requiring precise lifting and installation of structural components.

Challenges

  • Complex construction environment with limited operating space and strict requirements for safety and accuracy.
  • Heavy components required reliable lifting and positioning during installation.

Application

  • Improved construction efficiency and provided stable support for complex underground engineering tasks.
  • The Hydraulic Jack-Up System was applied for lifting, adjustment, and positioning operations in metro construction.
Hydraulic Jack-Up System
Hydraulic Jack-Up System - 应用案例1

Heavy Equipment Lifting

Project Overview

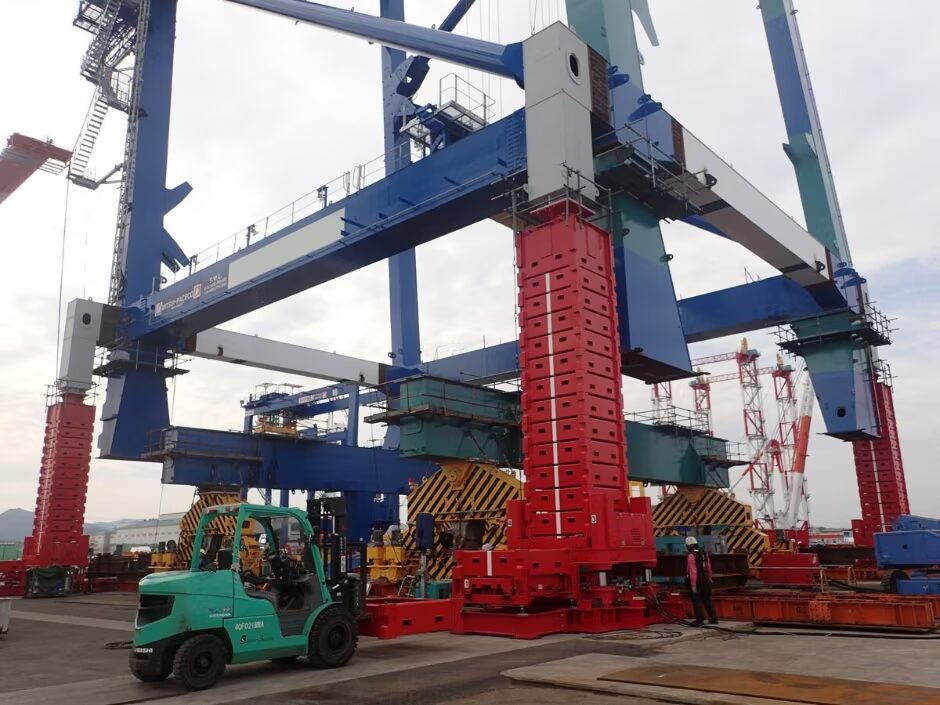

  • Height modification of STS Portainer Cranes to meet the operational requirements of larger container vessels.
  • The crane structure weighed approximately 1,650 tons and required a reliable lifting solution.

Challenges

  • Existing lifting facilities could not provide sufficient lifting height for crane extension.
  • Traditional lifting methods required complex structural reinforcement and longer preparation time.

Application

  • Synchronized lifting control ensured stable load distribution and accurate positioning throughout the process.
  • The Hydraulic Jack-Up System was applied for crane lifting and height extension operations.
